Hino truck Starter Motor EC100 EH300 EH500 EH700
This product is completely new and comes with a 12-month warranty that starts from the date of purchase. Our starter motor and alternator are of the highest quality and can be trusted.
They are made with premium parts that meet OE standards, including bearings, brush holders, regulators, rectifiers, stators, rotors, and pulleys. Additionally, our products feature genuine MobileIron regulators and rectifiers, ensuring superior performance and reliability.
Genuine mobiletron (regulator,rectifier)
NSK C&U BEARING
Further information
Replace Starter Motor Part No:70-8755
24V
This Starter Motor Suit
Hino
$450.00
Compatibility Info
| Specifications | |
|---|---|
| Volts | 24 |
| Kilo Watts (KW) | 4.5 KW |
| Overall Length(mm) | 298mm |
| Mounting Hole (mm) | 13mm |
| Mt Hole Center to Center (mm) | 107x120x140 |
| Flange Diameter (mm) | 100MM |
| Nose Cone Length (mm) | 00mm |
| Pinion at Rest (mm) | 28mm |
| Field Housing Diameter (mm) | 90mm |

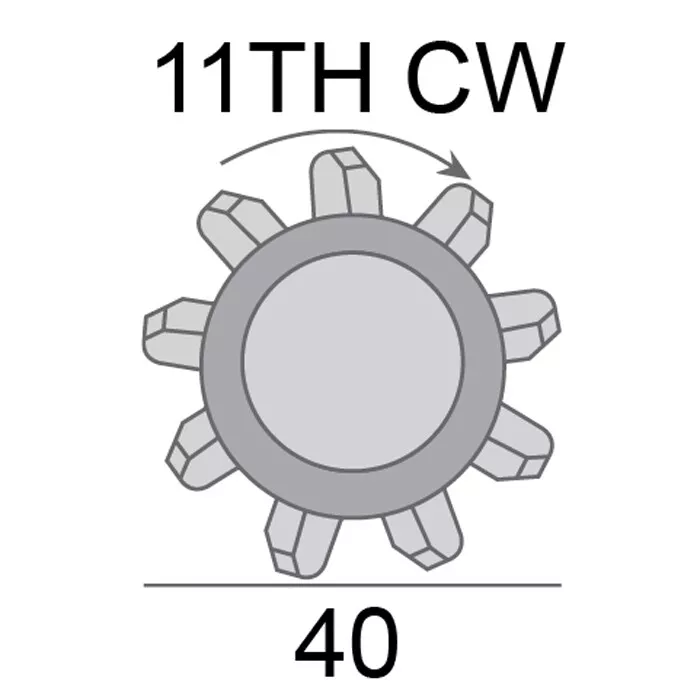

| Teeth | 11 |
| Rotation | CW |
| Pinon Diameter (mm) | 40mm |
| Make | Model | Series | Engine Code | Engine | Year |
|---|---|---|---|---|---|
| Hino | AK | EC100 | 5.0L Diesel | 0 | 1977-1985 |
| 0 | 0 | 0 | 0 | 0 | 0 |
