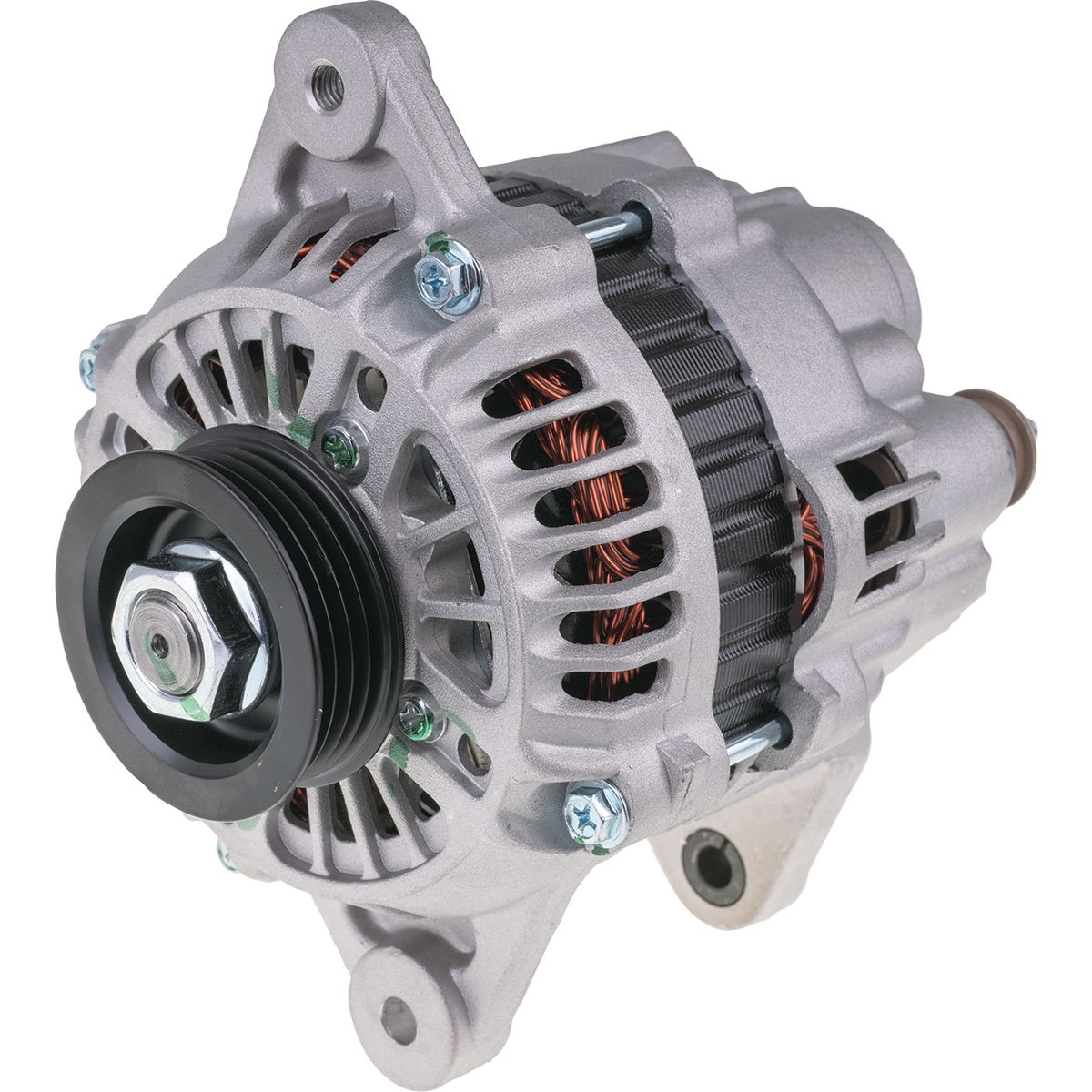

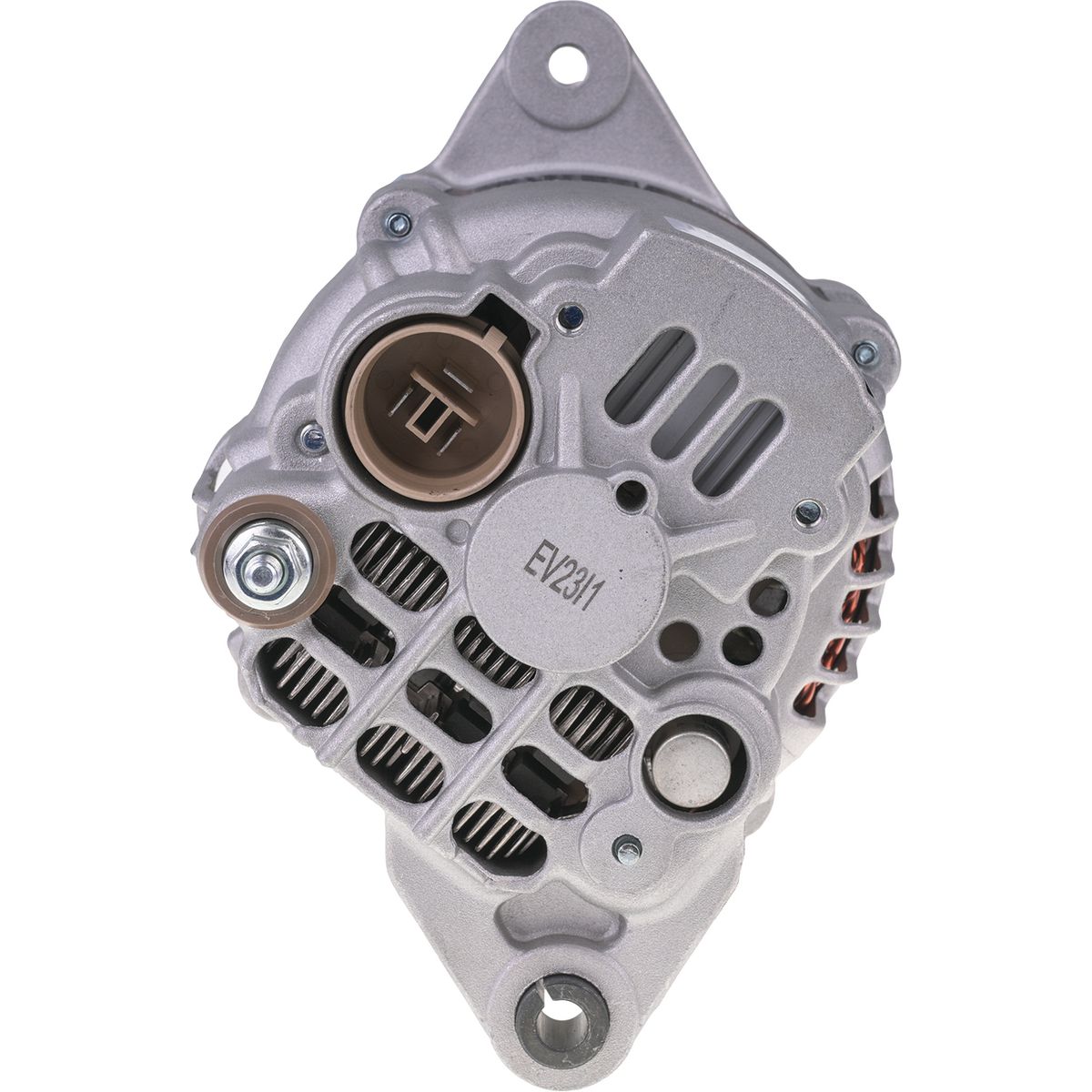

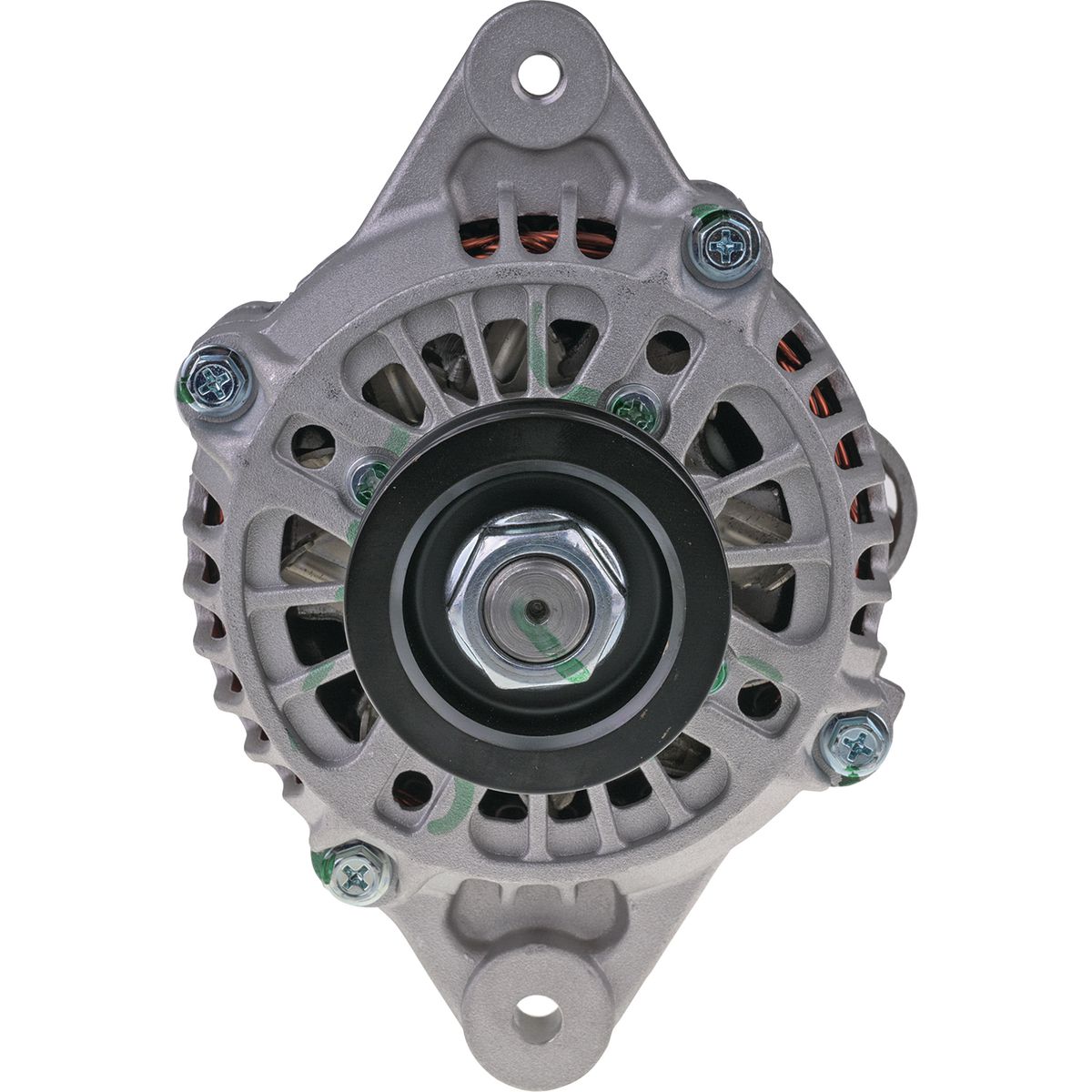

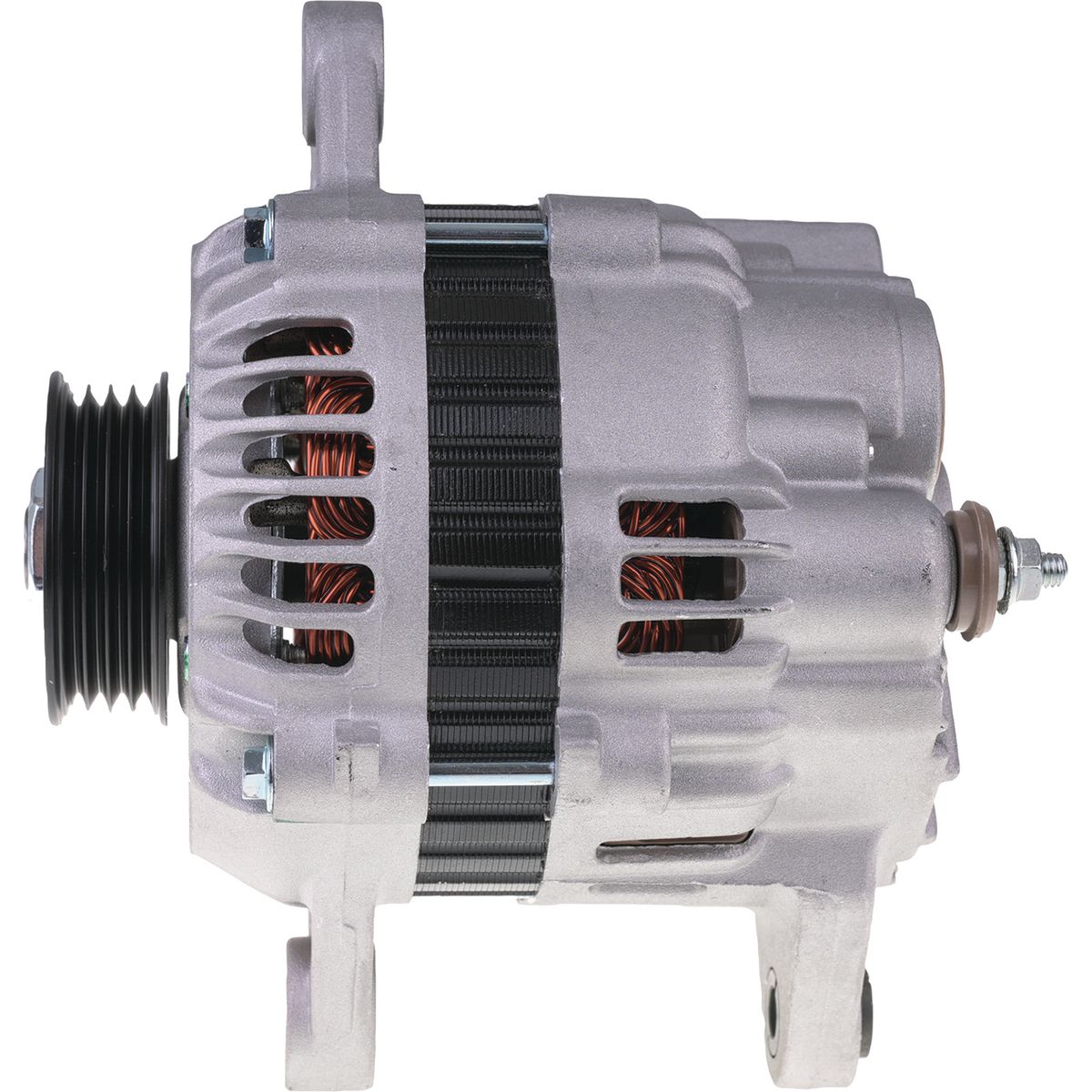

Alternator for SUZUKI VITARA G16A,G16B 1.6L PETROL Engine

Name: Alternator for SUZUKI VITARA G16A,G16B 1.6L PETROL Engine
SKU: DXA538
Price: 299.00 AUD
Availability: InStock

This product is completely new and comes with a 12-month warranty that starts from the date of purchase. Our starter motor and alternator are of the highest quality and can be trusted.

They are made with premium parts that meet OE standards, including bearings, brush holders, regulators, rectifiers, stators, rotors, and pulleys. Additionally, our products feature genuine MobileIron regulators and rectifiers, ensuring superior performance and reliability.

Genuine mobiletron (regulator,rectifier)

NSK C&U BEARING

Further information

Replace Alternator Part No: DXA538

12V 90A

This Alternator Suit

SUZUKI VITARA SE416,TA01 1.6L G16A (8V) SOHC 8v Petrol 4cyl SUV AWD [01/90 – 12/93]

$299.00

Compatibility Info

Specifications
Volts	12
Amperage	60A
Mount leg ID(mm)	67mm
CC Mount	156mm
Holes ID Top (mm)	M8x1.25
Hole Id Bottom (mm)	10
Pully Type	4PV
Pulley Diameter(mm)	—
Regulator Type	INTERNAL
Connection Plug	IR11
Terminal	D,IG,L
Series

Make	Model	Series	Engine Code	Engine	Year
Suzuki	Vitara	ET,TA Cabrio 1.6 (SE416)	AWD Petrol 1.6L 4cyl 55kW G16A (8V	0	1990-1993
Suzuki	Vitara	ET,TA,TD SUV 1.6 All-wheel Drive (SE416, TA01)	AWD Petrol 1.6L 4cyl 55kW G16A (8V	0	1900-1993
